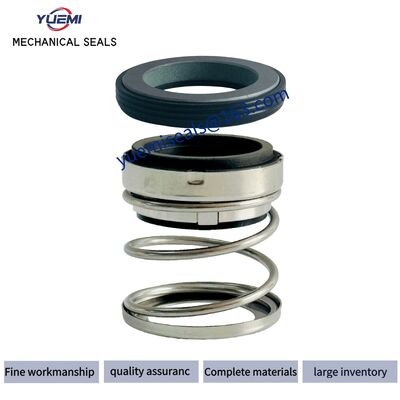

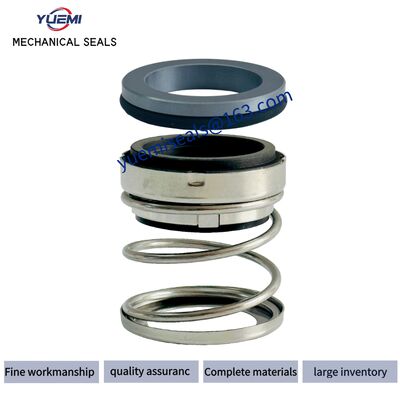

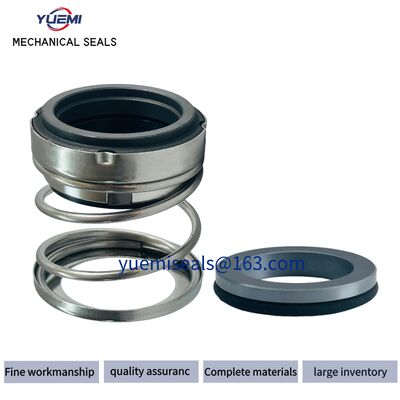

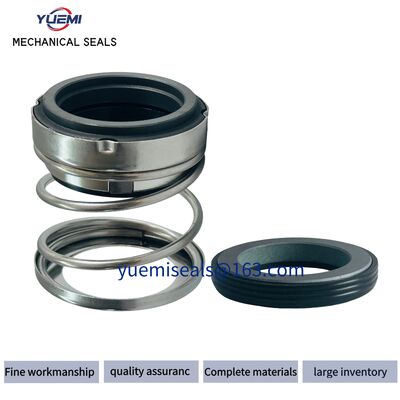

उत्पाद विवरण:
|
| शैली: | अनुकूलन | तापमान की रेंज: | -20 डिग्री सेल्सियस से 120 डिग्री सेल्सियस |
|---|---|---|---|
| सहायता: | गैर-मानक अनुकूलन | मूल: | चीन |
| सील: | एफकेएम | गारंटी: | पानी का पम्प |
| समय सीमा: | जहाज के लिए तेजी से | नमूना: | बीआईए |
| tramark: | युमी |
| Model | d(mm) | d3 | d7 | l1 | l3 |
| YM BIA-14 | 14 | 27.0 | 30 | 23.7 | 5.0 |
| YM BIA-16 | 16 | 28.5 | 32 | 26.0 | 5.0 |
| YM BIA-18 | 18 | 30.5 | 35 | 30.0 | 7.5 |
| YM BIA-20 | 20 | 34.0 | 35 | 29.0 | 8.0 |
| YM BIA-25 | 25 | 39.0 | 40 | 33.5 | 8.0 |
| YM BIA-28 | 28 | 42.0 | 43 | 33.5 | 8.0 |
| YM BIA-30 | 30 | 44.0 | 45 | 34.5 | 9.0 |
| YM BIA-32 | 32 | 47.0 | 48 | 42.5 | 9.0 |
| YM BIA-33 | 33 | 47.0 | 48 | 42.5 | 9.0 |
| YM BIA-35 | 35 | 49.0 | 50 | 42.5 | 9.0 |
| YM BIA-38 | 38 | 54.0 | 56 | 42.5 | 9.0 |
| YM BIA-40 | 40 | 56.0 | 58 | 42.5 | 9.0 |
| YM BIA-43 | 43 | 59.0 | 61 | 46.0 | 9.5 |
| YM BIA-45 | 45 | 62.0 | 63 | 47.5 | 9.5 |
| YM BIA-48 | 48 | 64.0 | 66 | 47.5 | 9.5 |
| YM BIA-50 | 50 | 66.0 | 70 | 47.5 | 9.5 |
| YM BIA-53 | 53 | 69.0 | 73 | 50.5 | 9.5 |
| YM BIA-55 | 55 | 72.0 | 75 | 50.5 | 9.5 |
| YM BIA-58 | 58 | 80.0 | 78 | 51.5 | 9.5 |
| YM BIA-60 | 60 | 80.0 | 80 | 51.5 | 9.5 |
| YM BIA-70 | 70 | 90.0 | 92 | 56.0 | 11.0 |
Performance Capabilities:
|
Temperature
|
-30ºC to 200ºC, dependent on the elastomer
|
|
Pressure
|
≤1.0MPa |
|
Speed
|
≤10m/s |
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
14-70MM
|
|
Brand
|
YUEMI
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM
|
|
Spring
|
SS304
|
|
Metal parts
|
SS304
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|
If the seal is not the one you need, contact us and inform us your pump model or drawing, material, shaft size for quotation. We will advise you and offer you corresponding mechanical seals.
Customized products and OEM is welcomed.
We offer factory price, high quality, fast delivery and best services.
