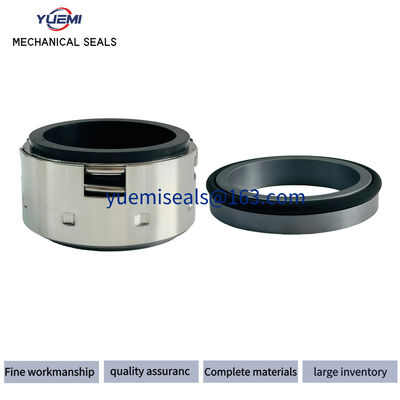

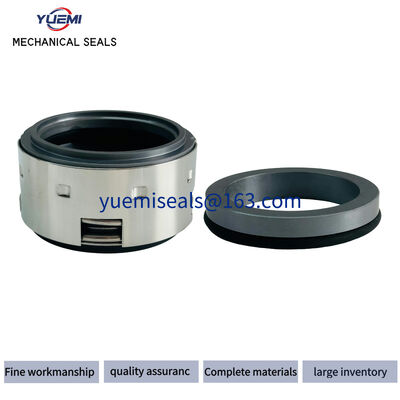

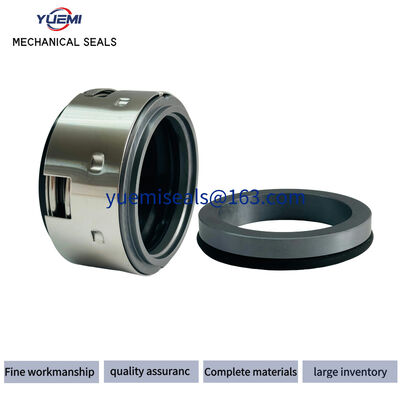

उत्पाद विवरण:
|
| पंप सील टाइप करें: | जॉन क्रेन | इंस्टालेशन: | स्थापित करना आसान है |
|---|---|---|---|
| वसंत सामग्री: | स्टेनलेस स्टील, | नमूना: | 502 |
| उत्पाद: | OEM पानी पंप सील | प्रकार: | सिंगल स्प्रिंग |
| स्थिर अंगूठी: | Sic/sic/vit | समय सीमा: | जहाज के लिए तेजी से |
| ओईएम: | विनिर्देश | उद्गम देश: | चीन |
| Sized(mm) | d3 | d6 | d7 | l1k | l4 |
| YM 502-12 | 22.6 | 18.5 | 22.5 | 32.5 | 12.0 |
| YM 502-14 | 24 | 21 | 25 | 35.0 | 12.0 |
| YM 502-16 | 26 | 23 | 27 | 35.0 | 12.0 |
| YM 502-18 | 32 | 27 | 33 | 37.5 | 13.5 |
| YM 502-20 | 34 | 29 | 35 | 37.5 | 13.5 |
| YM 502-22 | 36 | 31 | 37 | 37.5 | 13.5 |
| YM 502-24 | 38 | 33 | 39 | 40.0 | 13.3 |
| YM 502-25 | 39 | 34 | 40 | 40.0 | 13.0 |
| YM 502-28 | 42 | 37 | 43 | 42.5 | 12.5 |
| YM 502-30 | 44 | 39 | 45 | 42.5 | 12.0 |
| YM 502-32 | 46 | 42 | 48 | 42.5 | 12.0 |
| YM 502-33 | 46 | 42 | 48 | 42.5 | 12.0 |
| YM 502-35 | 49 | 44 | 50 | 42.5 | 12.0 |
| YM 502-38 | 54 | 49 | 56 | 45.0 | 13.0 |
| YM 502-40 | 56 | 51 | 58 | 45.0 | 13.0 |
| Size d(mm) | d3 | d6 | d7 | l1k | l4 |
| YM 502-43 | 59 | 54 | 61 | 45.0 | 13.0 |
| YM 502-45 | 61 | 56 | 63 | 45.0 | 13.0 |
| YM 502-48 | 64 | 59 | 66 | 45.0 | 13.0 |
| YM 502-50 | 66 | 62 | 70 | 47.5 | 13.5 |
| YM 502-55 | 71 | 67 | 75 | 47.5 | 13.5 |
| YM 502-60 | 80 | 72 | 80 | 52.5 | 13.5 |
| YM 502-65 | 85 | 77 | 85 | 52.5 | 13.5 |
| YM 502-70 | 89 | 83 | 92 | 60.0 | 14.5 |
| YM 502-75 | 96 | 88 | 97 | 60.0 | 14.5 |
| YM 502-80 | 104 | 95 | 105 | 60.0 | 15.0 |
| YM 502-85 | 108 | 100 | 110 | 60.0 | 15.0 |
| YM 502-90 | 114 | 105 | 115 | 65.0 | 15.0 |
| YM 502-95 | 118 | 110 | 120 | 65.0 | 15.0 |
| YM 502-100 | 124 | 115 | 125 | 65.0 | 15.0 |
|
emperature
|
-40ºC to 150ºC, dependent on the elastomer
|
|
Pressure
|
Up to 40 bar
|
|
Speed
|
Up to 15 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
From 14mm to 100mm
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
SiC, TC
|
|
Elastomer
|
NBR, EPDM
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
FAQ
Q1: Are you a trading company or a factory?
We are a factory, so we can offer you factory prices with high quality.
Q2: Can I get samples?
Yes. You can ask for samples. Usually it's free, but you need to pay for shipping.
Q3: Can l use my own logo or design on the goods?
Yes, we provide OEM/ODMservices; your logo and design can be printed on the products.
Q4: What are your payment terms?
We accept T/T, Paypal, Western Union, and credit card payment is also welcome.
Q5: How about the delivery time?
For stock items, we can ship immediately after receiving the payment.
For other products, we need 14-25 days for mass production, which depends on the quantity and type of order.
Q6: How can we ensure the quality?
Pre-production samples are required before mass production;Final inspection is required before shipment;
Q7: 1 can't find our products in your catalog, can you customize the products for us?
Yes, customized products are available, OEM is welcome.
